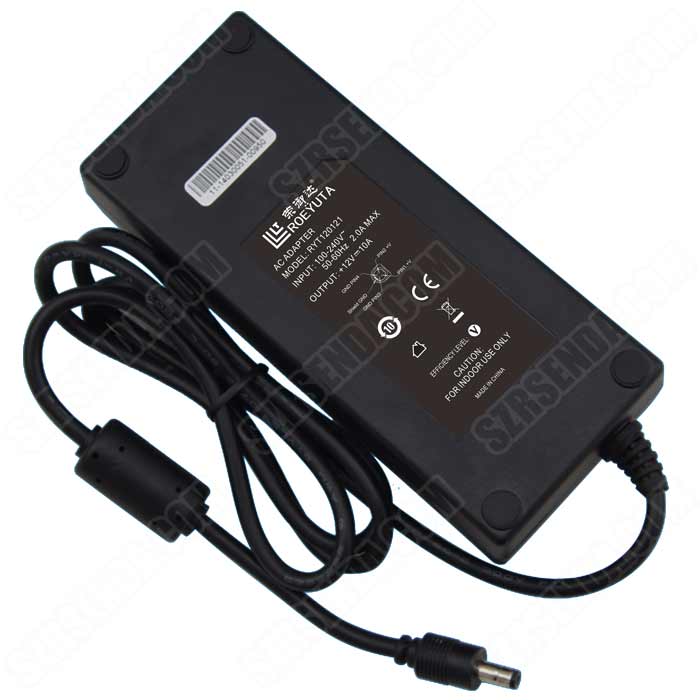

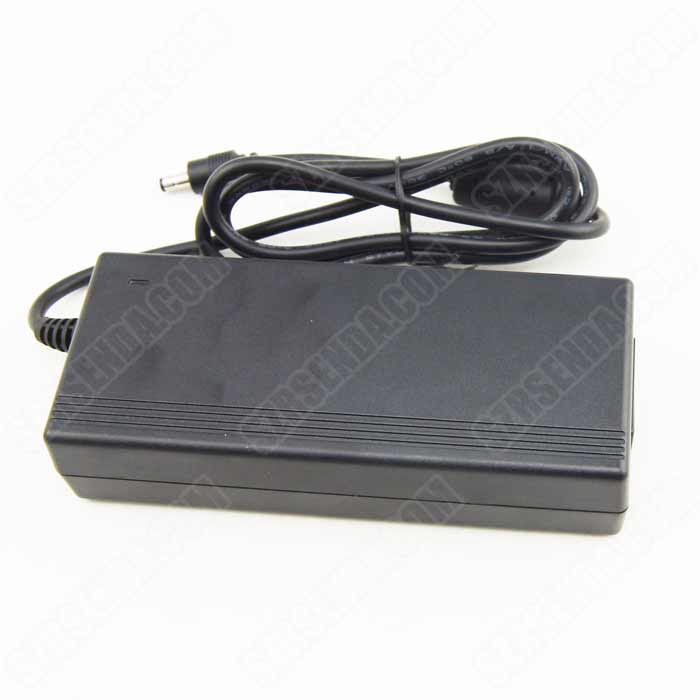

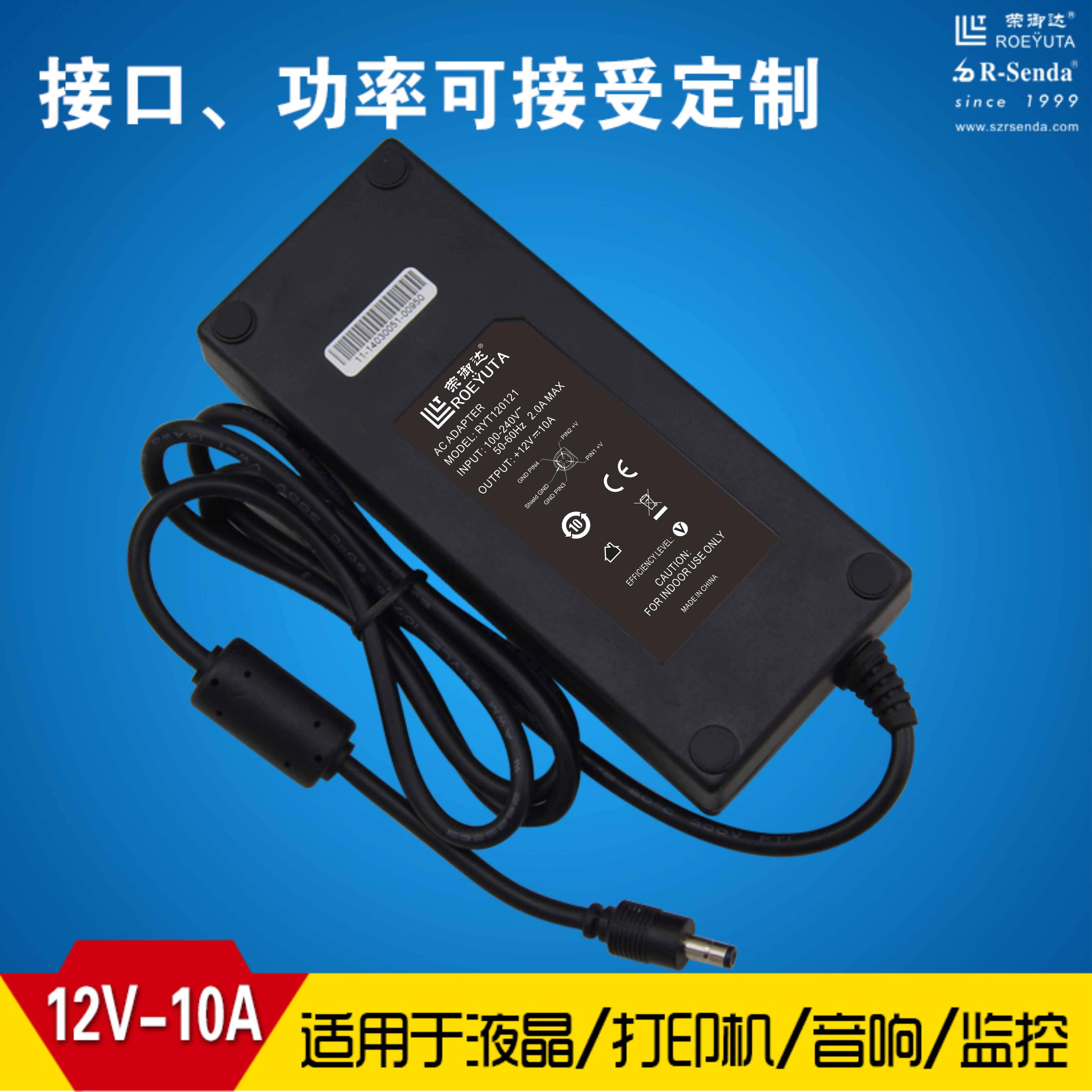

RYT120121

  • Model Number:   RYT120121
  • Rated Power:   120W
  • Application:  IPC, desktop
  • Output Voltage:  +12V DC
  • Power Type:  Adapter
  • Input Voltage:  90-264VAC
  • Connection type:  3PIN AC
  • Dimention:  168x71x37.5mm
  • Packaging Details:  10pcs/ctn
  • Carton Dimention:  -
  • Weight:  0.36KG

10 Other Products in the same category

Product Features

• Wide input voltage(90-264Vac)
• High efficiency
• Low output ripple noise
• Each output with over voltage protection
• Each output voltage with short-circuit protection
• 100% pressure test
• 100% high temperature aging test (50℃)
• Life cycle: more than 100KH hours

Product Details

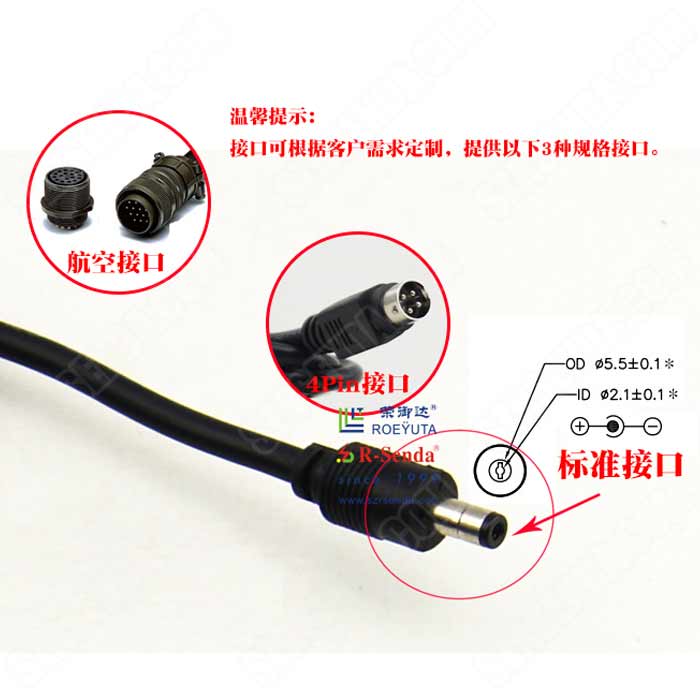

Connector
      • Input interface :3PIN AC
      • Output interface :5.5mm coaxial
    Parameters
    • AC Input: 90-264VAC 1.5A
      DC Output:
      • +12V1(Yellow):
      • 10A
      Output power: Max Power:120W,Rated Power:120W
    Parameters
      • Protection function: OVP, OPP, SCP
      • P.G signal: 100-500ms
      • Keep time: 8ms(min)
      • Conversion efficiency:87%
      • Safety certification:3C
      • MTBF:50000 hours
      • Working temperature:0-40℃
      • Relative humidity:10%-90%
      • Storage temperature:-20℃-80℃
      • Storage humidity :5%-95%
    Accessories
      • Packing list:
        Power Supply x1
        Power line x1
